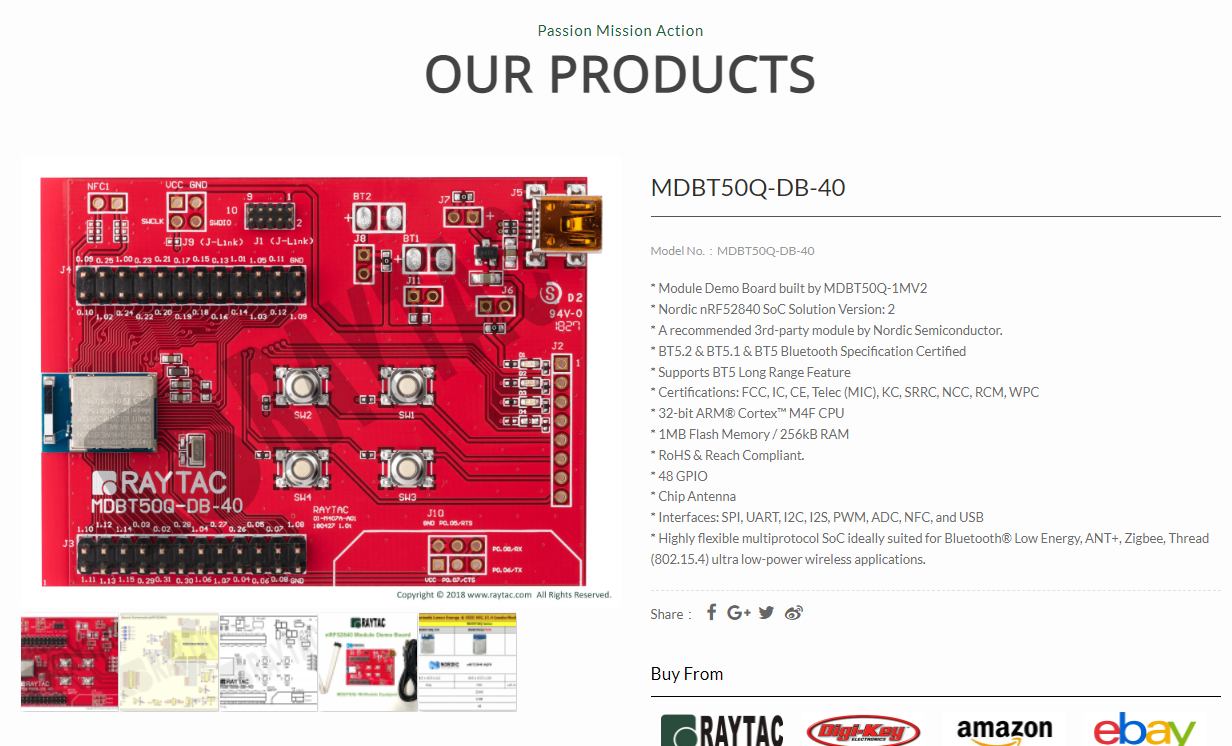

Specifications
 |
https://www.raytac.com/product/ins.php?index_id=81 |

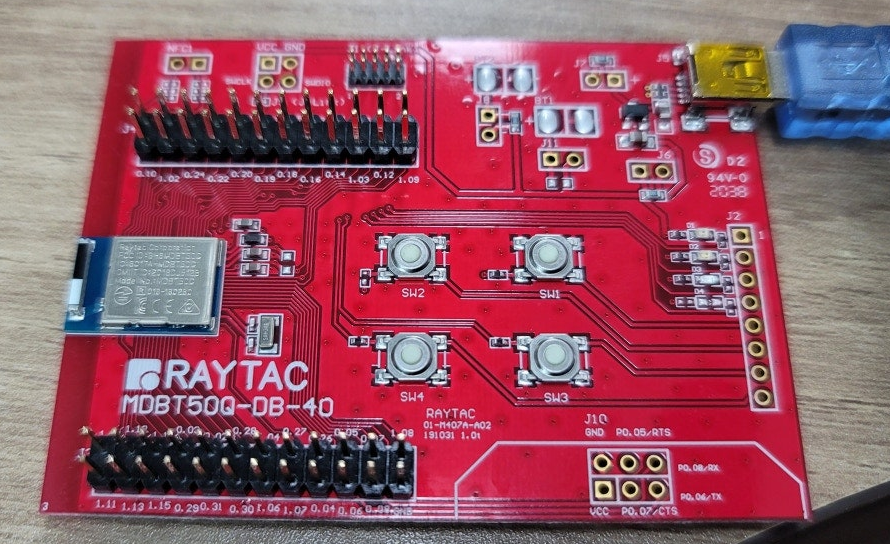

| Module Demo Board built by MDBT50Q-1MV2 * Nordic nRF52840 SoC Solution Version: 2 * A recommended 3rd-party module by Nordic Semiconductor. * BT5.2 & BT5.1 & BT5 Bluetooth Specification Certified * Supports BT5 Long Range Feature * Certifications: FCC, IC, CE, Telec (MIC), KC, SRRC, NCC, RCM, WPC * 32-bit ARM® Cortex™ M4F CPU * 1MB Flash Memory / 256kB RAM * RoHS & Reach Compliant. * 48 GPIO * Chip Antenna * Interfaces: SPI, UART, I2C, I2S, PWM, ADC, NFC, and USB * Highly flexible multiprotocol SoC ideally suited for Bluetooth® Low Energy, ANT+, Zigbee, Thread (802.15.4) ultra low-power wireless applications. |
 |

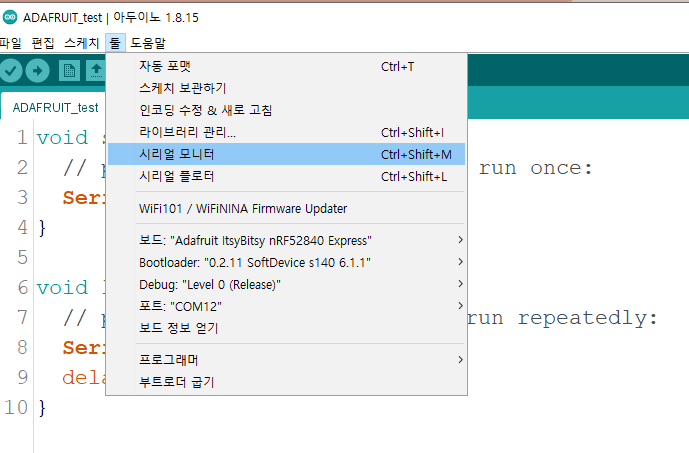

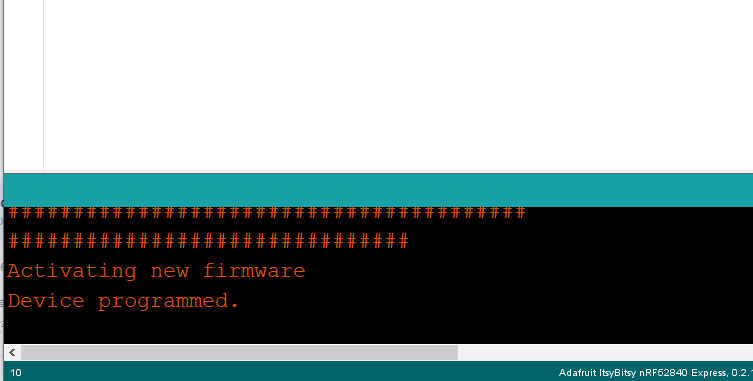

Arduino IDE Update
| Additional Board Manager URL | https://learn.adafruit.com/bluefruit-nrf52-feather-learning-guide/arduino-bsp-setup |
 |
 |
 |
