Raspberry Pico + Ethernet W5500

Arduino IDE 설정

참조

https://dokkodai.tistory.com/200?category=555883

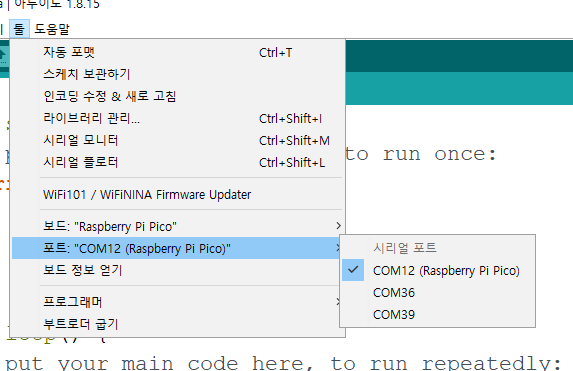

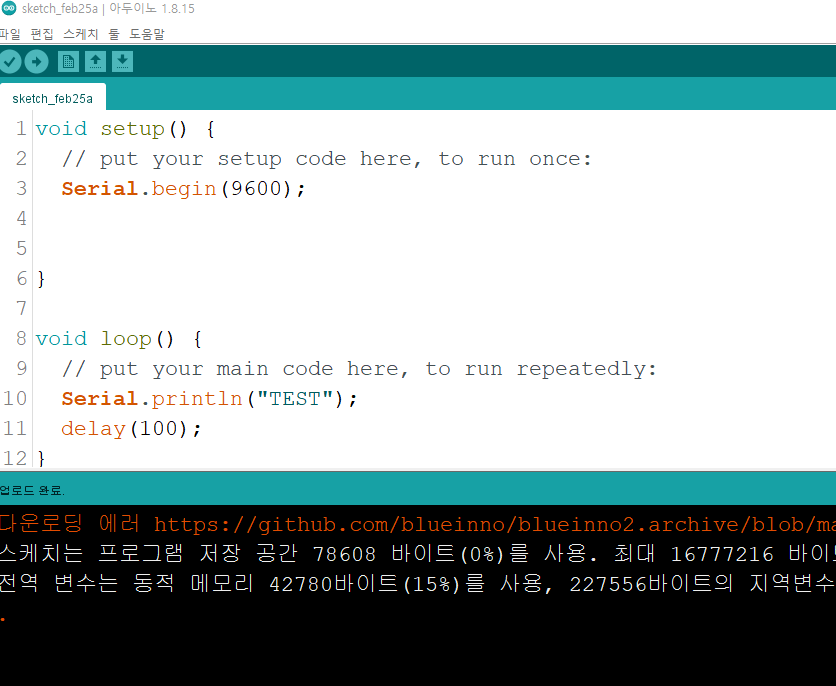

업데이트 완료후 컴포트 설정됨

Include Ethernet

참조 https://dokkodai.tistory.com/199

참조 https://www.hackster.io/loveivyou/w5100s-evb-pico-with-the-arduino-ide-fe6315

소스코드

/*
 DHCP Chat  Server

 A simple server that distributes any incoming messages to all
 connected clients.  To use, telnet to your device's IP address and type.
 You can see the client's input in the serial monitor as well.
 Using an Arduino Wiznet Ethernet shield.

 THis version attempts to get an IP address using DHCP

 Circuit:
 * Ethernet shield attached to pins 10, 11, 12, 13

 created 21 May 2011
 modified 9 Apr 2012
 by Tom Igoe
 modified 02 Sept 2015
 by Arturo Guadalupi
 Based on ChatServer example by David A. Mellis

 */

#include <SPI.h>
#include <EthernetClient.h>
#include <Ethernet.h>

// Enter a MAC address and IP address for your controller below.
// The IP address will be dependent on your local network.
// gateway and subnet are optional:
byte mac[] = {
  0x00, 0xAA, 0xBB, 0xCC, 0xDE, 0x02
};
IPAddress ip(192, 168, 64, 177);
IPAddress myDns(192, 168, 64, 1);
IPAddress gateway(192, 168, 64, 1);
IPAddress subnet(255, 255, 255, 0);

// telnet defaults to port 23
EthernetServer server(23);
bool gotAMessage = false; // whether or not you got a message from the client yet

void setup() {
  // You can use Ethernet.init(pin) to configure the CS pin
  //Ethernet.init(10);  // Most Arduino shields
  //Ethernet.init(5);   // MKR ETH shield
  //Ethernet.init(0);   // Teensy 2.0
  //Ethernet.init(20);  // Teensy++ 2.0
  //Ethernet.init(15);  // ESP8266 with Adafruit Featherwing Ethernet
  //Ethernet.init(33);  // ESP32 with Adafruit Featherwing Ethernet
  Ethernet.init(17);  // WIZnet W5100S-EVB-Pico

  // Open serial communications and wait for port to open:
  Serial.begin(9600);
  while (!Serial) {
    ; // wait for serial port to connect. Needed for native USB port only
  }

  // start the Ethernet connection:

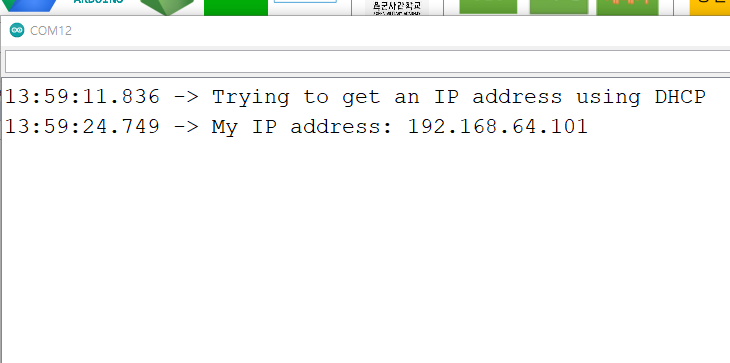

  Serial.println("Trying to get an IP address using DHCP");
  if (Ethernet.begin(mac) == 0) {
    Serial.println("Failed to configure Ethernet using DHCP");
    // Check for Ethernet hardware present
    if (Ethernet.hardwareStatus() == EthernetNoHardware) {
      Serial.println("Ethernet shield was not found.  Sorry, can't run without hardware. :(");
      while (true) {
        delay(1); // do nothing, no point running without Ethernet hardware
      }
    }
    if (Ethernet.linkStatus() == LinkOFF) {
      Serial.println("Ethernet cable is not connected.");
    }
    // initialize the Ethernet device not using DHCP:
    Ethernet.begin(mac, ip, myDns, gateway, subnet);
  }
  // print your local IP address:
  Serial.print("My IP address: ");
  Serial.println(Ethernet.localIP());

  // start listening for clients
  server.begin();
}

void loop() {
  // wait for a new client:
  EthernetClient client = server.available();

  // when the client sends the first byte, say hello:
  if (client) {
    if (!gotAMessage) {
      Serial.println("We have a new client");
      client.println("Hello, client!");
      gotAMessage = true;
    }

    // read the bytes incoming from the client:
    char thisChar = client.read();
    // echo the bytes back to the client:
    server.write(thisChar);
    // echo the bytes to the server as well:
    Serial.print(thisChar);
    Ethernet.maintain();
  }
}



QnA

Ethernet library issue with raspberry pi pico

https://forum.arduino.cc/t/ethernet-library-issue-with-raspberry-pi-pico/863792
