Thingsboard - MQTT RPC Control

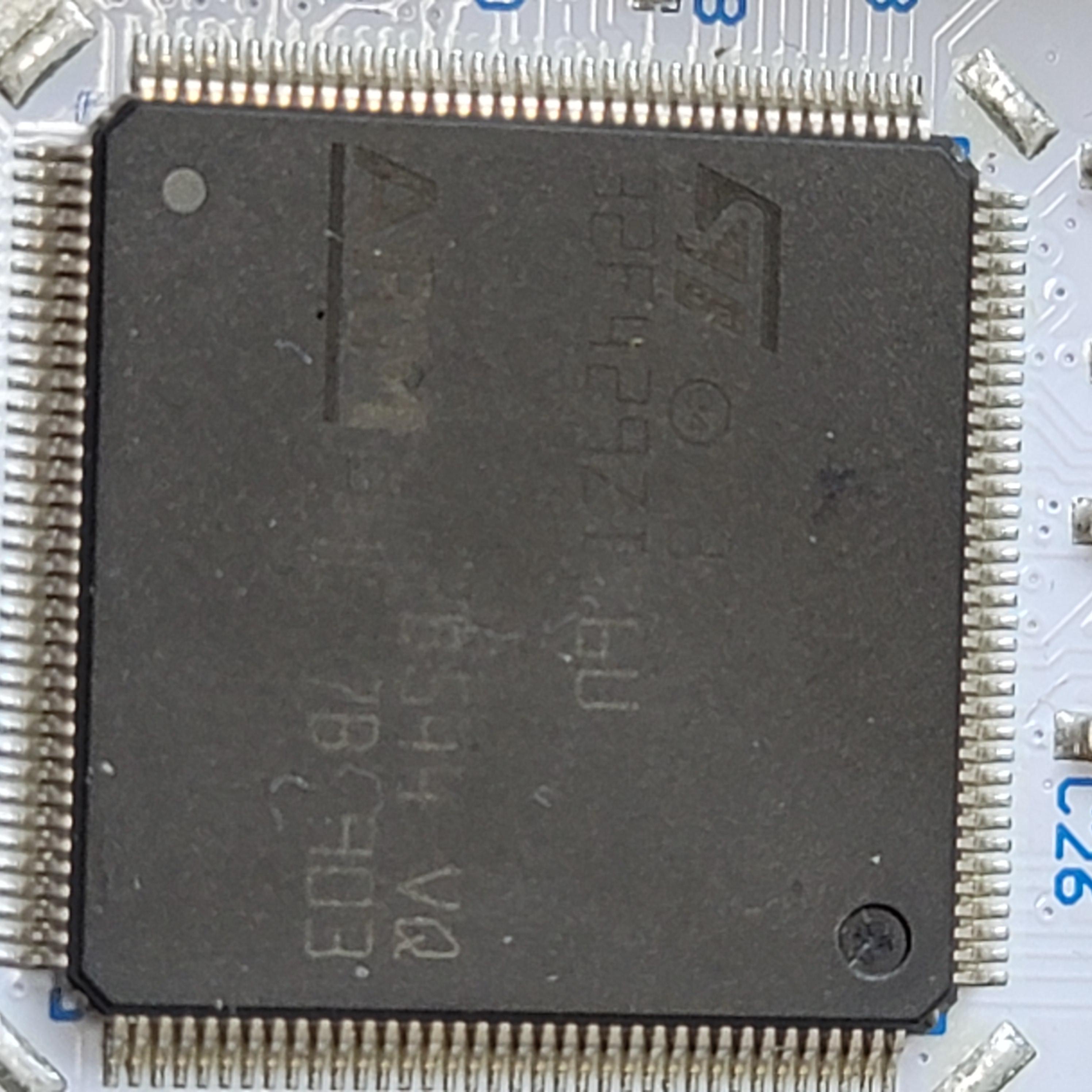

STM32

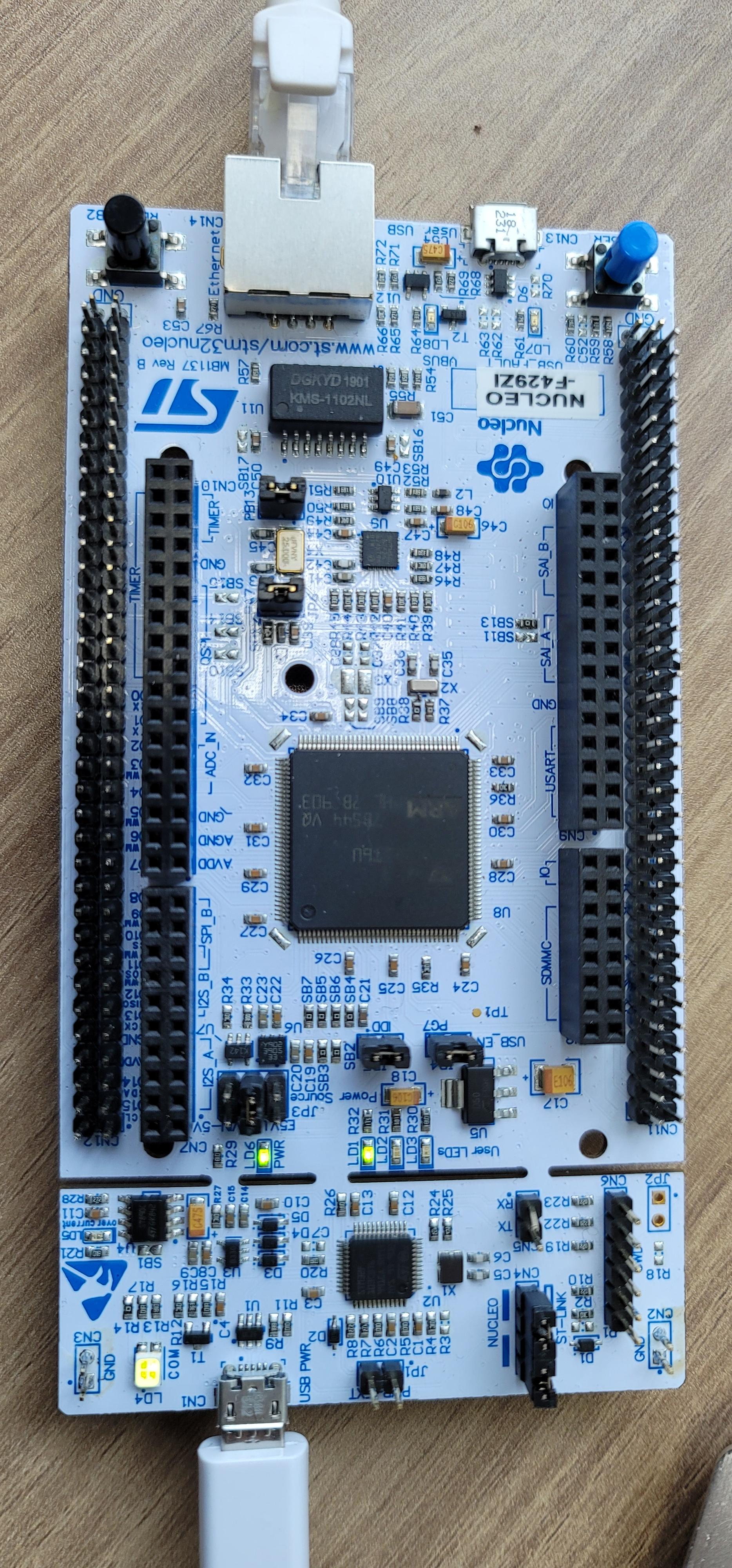

Ethernet + GPIO Output 32 + (ADC 16 + 9) Channel



ESP8266 통신 테스트 to Thingsboard

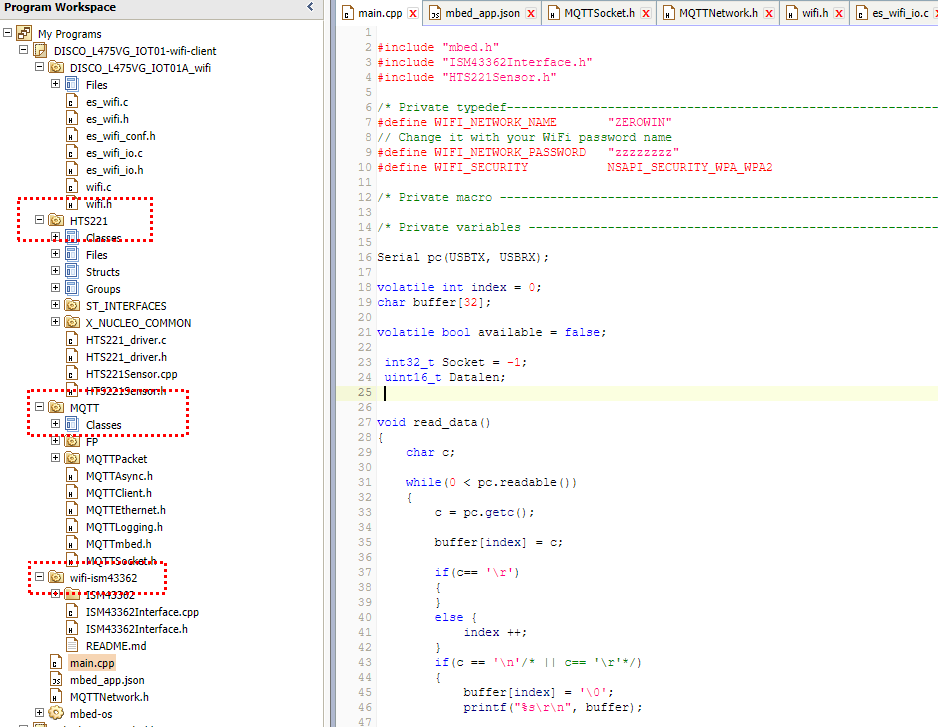

MBED Development

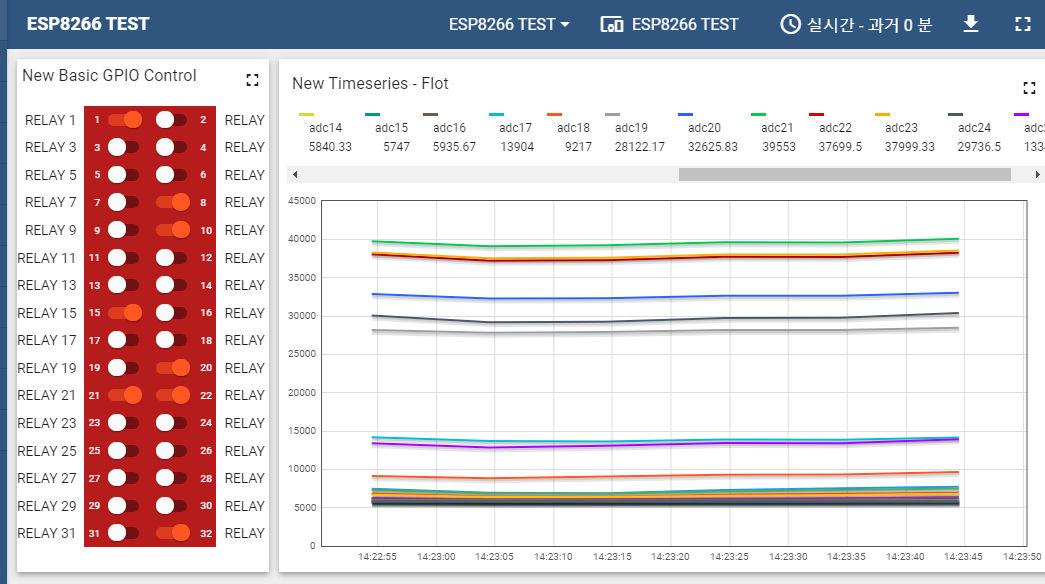

테스트화면

RPC GPIO 32 통신 제어합니다.

ADC Channel (16 + 9) 값을 신호를 수신합니다.

참조

Mqtt 설치

jolog.tistory.com/12

윈도우에서 MQTT(Mosquitto) 설치하기

mosquitto.org/download/

Download

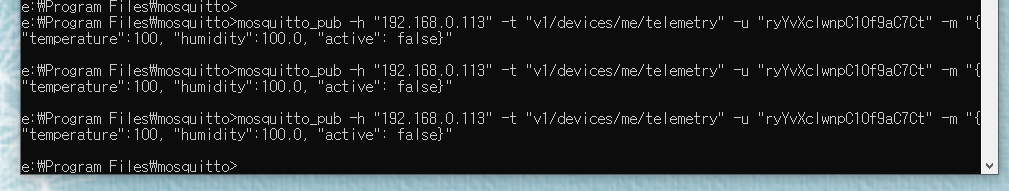

Mqtt Publish

mosquitto_pub -h "192.168.0.113" -t "v1/devices/me/telemetry" -u "ryYvXcIwnpC10f9aC7Ct" -m "{"temperature":100, "humidity":100.0, "active": false}"

#include "mbed.h"
#include "ISM43362Interface.h"
#include "HTS221Sensor.h"

/* Private typedef------------------------------------------------------------*/
#define WIFI_NETWORK_NAME       "ZEROWIN"
// Change it with your WiFi password name
#define WIFI_NETWORK_PASSWORD   "zzzzzzzz"
#define WIFI_SECURITY           NSAPI_SECURITY_WPA_WPA2

/* Private macro -------------------------------------------------------------*/

/* Private variables ---------------------------------------------------------*/

Serial pc(USBTX, USBRX);

volatile int index = 0;
char buffer[32];

volatile bool available = false;

 int32_t Socket = -1;
 uint16_t Datalen;


void read_data()
{
    char c;

    while(0 < pc.readable())
    {
        c = pc.getc();

        buffer[index] = c;

        if(c== '\r')
        {
        }
        else {
            index ++;
        }
        if(c == '\n'/* || c== '\r'*/)
        {
            buffer[index] = '\0';
            printf("%s\r\n", buffer);

            available = true;
            index = 0;


        }
    }
}

#include "TCPSocket.h"
#include "MQTTmbed.h"
#include "MQTTClient.h"

#define MQTT_HOST               "192.168.0.113"
#define MQTT_PORT               1883
#define MQTT_TOPIC              "v1/devices/me/telemetry"

#include "MQTTNetwork.h"

int main()
{
    pc.baud(115200);
    pc.attach(read_data);

int count = 0;

    ISM43362Interface wifi(MBED_CONF_APP_WIFI_SPI_MOSI,
            MBED_CONF_APP_WIFI_SPI_MISO,
            MBED_CONF_APP_WIFI_SPI_SCLK,
            MBED_CONF_APP_WIFI_SPI_NSS,
            MBED_CONF_APP_WIFI_RESET,
            MBED_CONF_APP_WIFI_DATAREADY,
            MBED_CONF_APP_WIFI_WAKEUP, false);

    // Scanning WiFi networks ------------------------------------------
#if 0
    WiFiAccessPoint *ap;
    count = wifi.scan(NULL, 0);
    printf("%d networks available.\n", count);

    /* Limit number of network arbitrary to 15 */
    count = count < 15 ? count : 15;

    ap = new WiFiAccessPoint[count];
    count = wifi.scan(ap, count);
    for (int i = 0; i < count; i++) {
        printf("Network: %s RSSI: %hhd\n", ap[i].get_ssid(), ap[i].get_rssi());
    }

    delete[] ap;
    #endif

    // Connecting to WiFi network --------------------------------------

    printf("\nConnecting to %s...\n", WIFI_NETWORK_NAME);
    int ret = wifi.connect(WIFI_NETWORK_NAME, WIFI_NETWORK_PASSWORD, WIFI_SECURITY);
    if (ret != 0) {
        printf("\nConnection error\n");
        return -1;
    }

    printf("Success\n\n");
    printf("MAC: %s\n", wifi.get_mac_address());
    printf("IP: %s\n", wifi.get_ip_address());
    printf("Netmask: %s\n", wifi.get_netmask());
    printf("Gateway: %s\n", wifi.get_gateway());
    printf("RSSI: %d\n\n", wifi.get_rssi());

    {
        MQTTNetwork network(&wifi);
        MQTT::Client<MQTTNetwork, Countdown> client(network);

        char assess_token[] = "ryYvXcIwnpC10f9aC7Ct";

        MQTTPacket_connectData conn_data = MQTTPacket_connectData_initializer;
        conn_data.username.cstring = assess_token;

        if (network.connect(MQTT_HOST, MQTT_PORT) < 0) {
            printf("failed to connect to " MQTT_HOST  "\n");
            return -1;
        }

        if (client.connect(conn_data) < 0) {
            printf("failed to send MQTT connect message\n");
            return -1;
        }

        printf("successfully connect!\n");

        {

            uint8_t id;
            DevI2C i2c_2(PB_11, PB_10);
            HTS221Sensor hum_temp(&i2c_2);

            hum_temp.init(NULL);
            hum_temp.enable();
            hum_temp.read_id(&id);
            printf("HTS221  humidity & temperature sensor = 0x%X\r\n", id);

            // Get data from sensors -----------------------------------------------

            for (;;) {
                float temp, humid;

                hum_temp.get_temperature(&temp);
                hum_temp.get_humidity(&humid);
                printf("HTS221:  [temp] %.2f C, [hum]   %.2f%%\r\n", temp, humid);

                char msg[256];
                int n = snprintf(msg, sizeof(msg),
                    "{\"temperature\":%f, \"humidity\":%f, \"active\": false}",
                    temp, humid);

                void *payload = reinterpret_cast<void*>(msg);
                size_t payload_len = n;

                printf("publish to: %s %d %s\r\n", MQTT_HOST, MQTT_PORT, MQTT_TOPIC);

                if (client.publish(MQTT_TOPIC, payload, n) < 0) {
                    printf("failed to publish MQTT message");
                }

                wait_ms(1000);
            }

        }

        client.disconnect();
        wifi.disconnect();

        printf("\ndone\n");
    }

    while(1) {


   }
}



References

forgge.github.io/B-L475E-IOT01A-thingsboard-read-temperature-and-humidity-using-mbed.html

Using thingsboard.io, STM32 B-L475E-IOT01A IoT kit and ARM Mbed to monitor temperature
